Oil & Swarf Recovery

Industrial Vacuum for Oil, Swarf & Chips Recovery

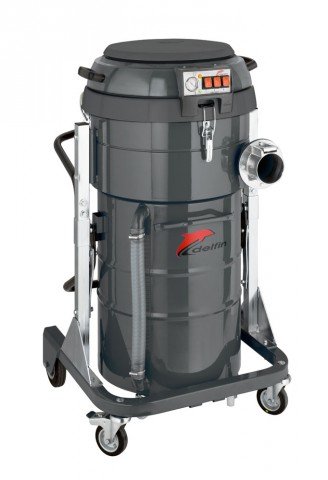

Oil & Swarf RecoveryA unique example of compactness and performance, the DM 40 OIL has been designed to meet the most demanding requirements of extraction and recovery of liquids, oils, swarf and emulsions, whether or not mixed with dust or mud.

A series of filters always protects engines from oil and shavings.

Thanks to the detachable container the discharge of collected material becomes fast and easy, minimising the time of cleaning and consequently the downtime of production.

Main Features

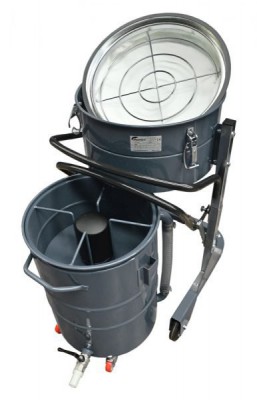

  • Detachable collection container with integrated floating device for liquids
  • Sieve basket for liquid / solid separation, swarf etc
  • Level indicator for vacuumed liquids
  • Dust filter for dry cleaning service
  • Tangential suction inlet with integrated cyclone

DM40 OIL – Specifications

MODEL DM40 OIL
Power (Voltage) 230 – 1
Frequency (Hz) 50
Power (kW) 3.4
Depression (mmH2O) 2500
Airflow max. (m3/h) 540
Capacity (Litres) 100
Swarf capacity (Litres) 40
Floating YES
Suction inlet diameter (mm) 80
Sound level – dB(A) 76
Dimensions (cm) 69 x 66 x 113H
